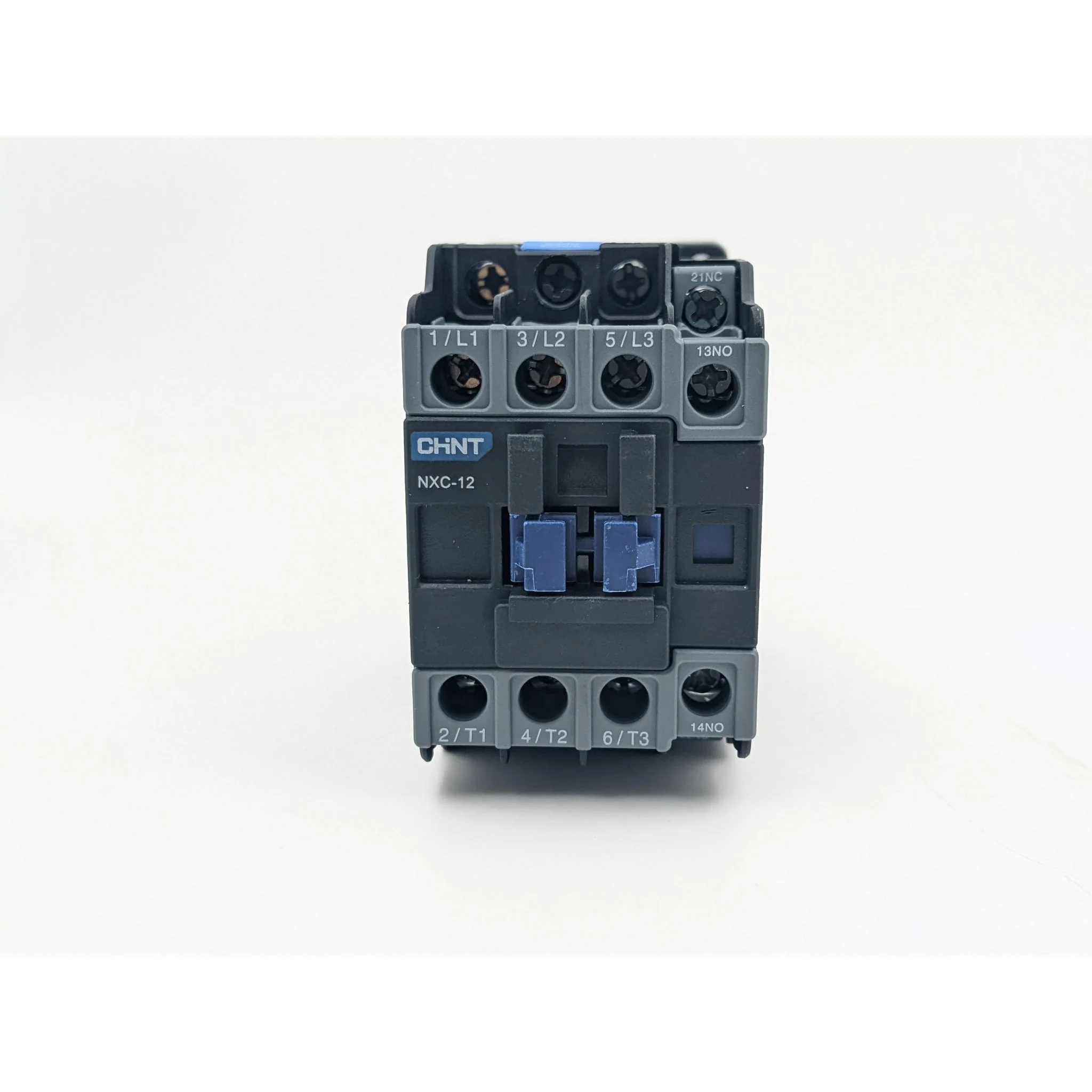

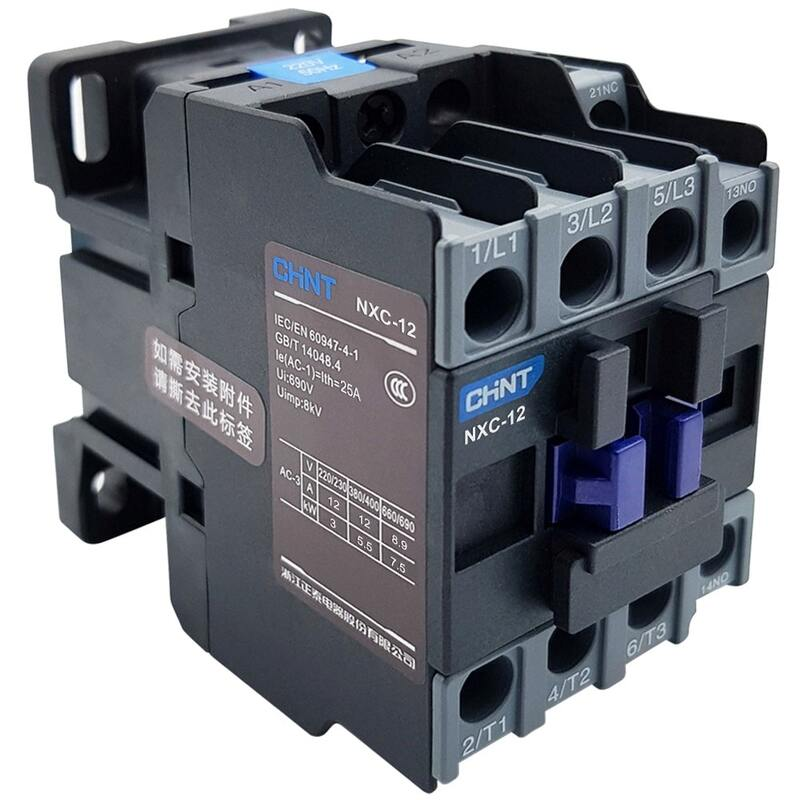

Contacteur 3P NXC-12 400V 50/60Hz

Key Technical Characteristics
FeatureSpecification Series / Model NXC‑12 (part of CHINT NXC series: 06–630A)                                                                          Rated Operational Current (Ie)12 A at AC‑3 duty, 400 VAC (also suitable for up to 690 VAC)                                                      Poles3 main poles + optional auxiliary (1 NO + 1 NC)                                                                                                                       Voltage Range220–690 VAC for main circuit; coil voltage options from 24 VAC/DC to 660 VAC/DC                       StandardsIEC/EN 60947‑1, 60947‑4‑1, 60947‑5‑1; CE, KEMA, UL, VDE certified                                                                        Insulation & ImpulseUi = 690 V (up to 100A models); Uimp = 4 kV                                                                                           MountingDIN‑rail and panel screw mount options for NXC‑06M to NXC‑100                                                                             Protection ClassIP20 (front) for 06–12; IP10 rear for 40–100                                                                                             ApplicationsFrequent motor starts, lighting, heaters, remote control                                                                                        Mechanical LifeApprox. 1–12 million operations (depending on model)
